The system modules are connected to the CPU on the left side via a multi-pin connector. Internally they are connected via PCI Express. For the CX20xx series, up to four modules can be connected in any order. A module can be connected to CX52x0, CX53x0 or CX56x0.

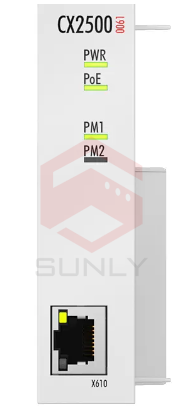

The CX2500-0061 Power over Ethernet module supports devices with PoE categories 0, 1, 2, 3, and 4 according to the IEEE 802.3af-2003 PoE standard. Maximum PoE output power is 15.4 W. PoE power voltage is generated internally, no external power source required. In case the CX2500-0061 is overloaded, the PoE power will turn off for two seconds, then restart. The PWR, PoE, PM1 and PM2 diagnostic LEDs provide information about the PoE supply type (mode A or B) as well as about the PoE type reported by the powered device.
Technical data | CX2500-0061 |
---|---|
Interfaces | 1 x Ethernet |
Data transfer rates | 10/100/1000 Mbit/s with Power over Ethernet (PoE) |
Type of connection | 1 x RJ45 |
Power supply | via system bus (through CX2100-0xxx power supply modules) |
Dimensions (W x H x D) | 24 mm x 99 mm x 54.5 mm |
Weight | approx. 208 g |
Relative humidity | 95%, no condensation |
Operating/storage temperature | -25…+60°C/-40…+85°C |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protection rating | IP20 |
Technical reference: cx2500-0061en-1
