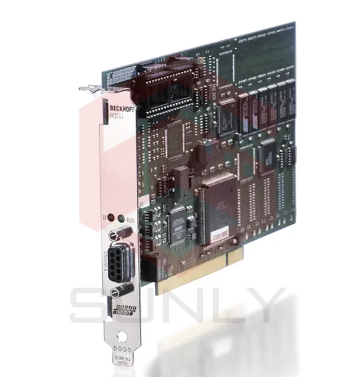

FC3101-0002 | PROFIBUS master/slave card, 1 channel, PCI

FC3101-0002 | PROFIBUS master/slave card, 1 channel, PCI

PROFIBUS DP, DP-V1 and DP-V2 (MC): the PROFIBUS PCI Fieldbus Cards from Beckhoff can master the PROFIBUS protocol with all its features. Thanks to the PROFIBUS chip developed in-house, the cards are equipped with the latest version of the PROFIBUS technology – including high-precision isochronous mode for axis control and expanded diagnostic options. These cards are the only ones to support different polling rates for the slaves and can even synchronize several channels accurately with each other. Features:

cycle times from 200 µs

master, slave and PROFIBUS monitor up to 12 Mbit/s

powerful parameter and diagnostics interfaces

The error management for each bus user is freely configurable.

It is possible to read the bus configuration and automatically assign the “GSE” files.

In TwinCAT, all functions are conveniently available. But other applications also benefit from the diverse features: general drivers for different Windows versions and convenient configuration tools are included in the TwinCAT I/O software package. High-level language programs use the DLL, Visual Basic applications the ActiveX interface. Applications with OPC interface can access process data and parameters via an OPC server.

Fieldbus            PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant)

PC interface   PCI

Number of fieldbus channels             1

Data transfer rates      9.6 kbaud…12 Mbaud

Bus interface 1 x D-sub socket, 9-pin, galvanically decoupled

Cycle time       differing DP cycle times per slave are possible using the CDL concept

Hardware diagnostics             2 LEDs per channel

Bit width in the process image           per channel total max.: 3 kbyte input and output data

NOVRAM          32 kbytes

Dimensions    approx. 106 mm x 175 mm

Operating temperature           0…+55 °C

>>> Refer to technical document: FC310xen
