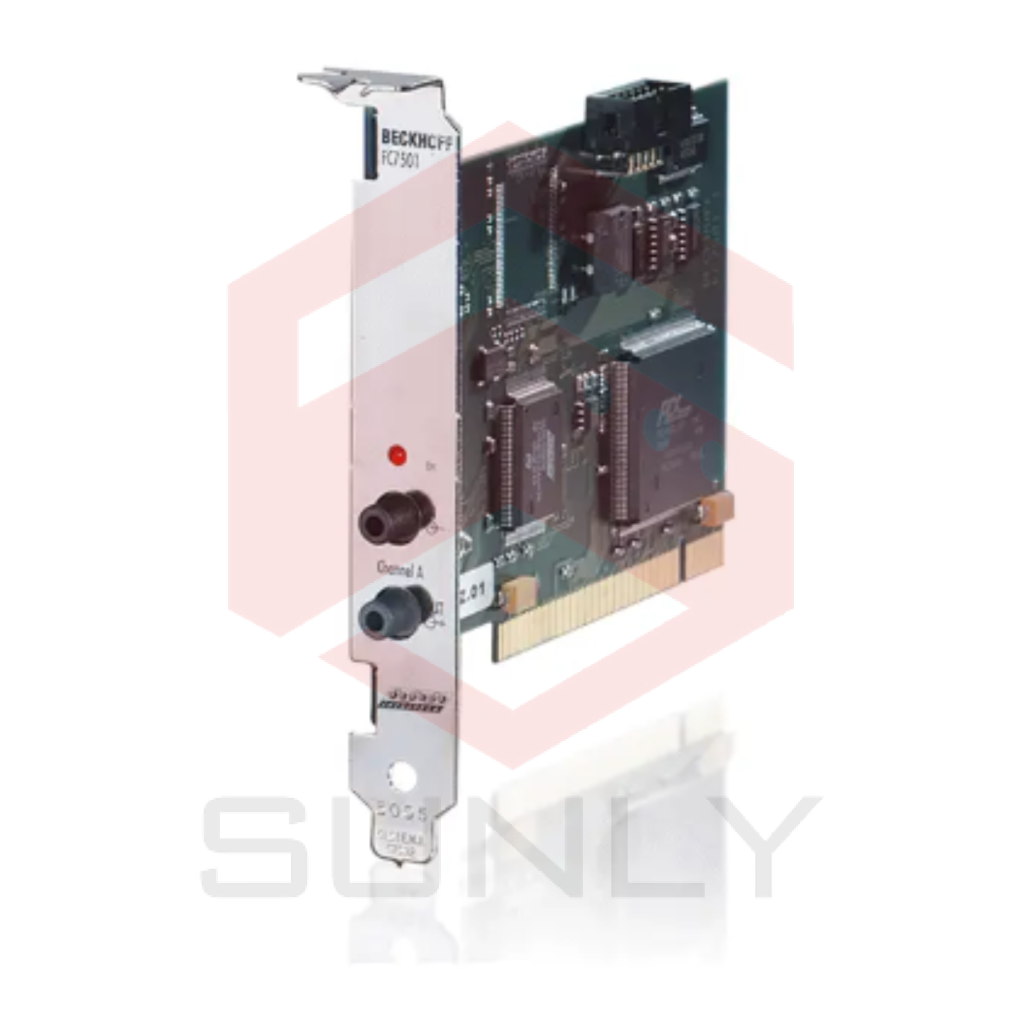

FC7501 | SERCOS II master card, 1 channel, PCI

The SERCOS II PCI Fieldbus Cards from Beckhoff allow direct access to the SERCON816-ASIC. The driver for these passive cards is incorporated into the TwinCAT software and allows optimum access to the SERCOS interface. There are no artificial limitations with regard to the number of bus devices and I/O data per device. The power of TwinCAT comes into its own with this interface generation:

up to 254 devices (axes, I/O modules, e.g. Bus Terminals with Bus Coupler BK7500)

any assignment and length of the I/O data

exact synchronization between TwinCAT and SERCOS

cycle times from 62.5 µs are possible

synchronous communication of process data

Master mode can be parameterized by software.

It is possible to select two parallel fieldbus channels on one card (2 x SERCON816).

Synchronization of both channels and other cards along with PC is possible.

Upload of network configuration is supported.

TwinCAT I/O provides configuration tools and drivers for different Windows versions for programs in any desired high level language (DLLs) and for Visual Basic applications (ActiveX). Applications with OPC interfaces can access the cards via an OPC server.

Fieldbus SERCOS II

PC interface PCI

Number of fieldbus channels 1

Data transfer rates 2, 4, 8, 16 Mbaud

Bus interface 2 x connector FSMA according to IEC 874-2

Synchronization synchronization of several cards via ribbon cable

Cycle time all cycle times supported by SERCOS interface (down to 62.5 µs)

Hardware diagnostics 1 LED per channel

NOVRAM –

Dimensions approx. 95 mm x 120 mm

Operating temperature 0…+55 °C

Driver TwinCAT I/O and higher levels
