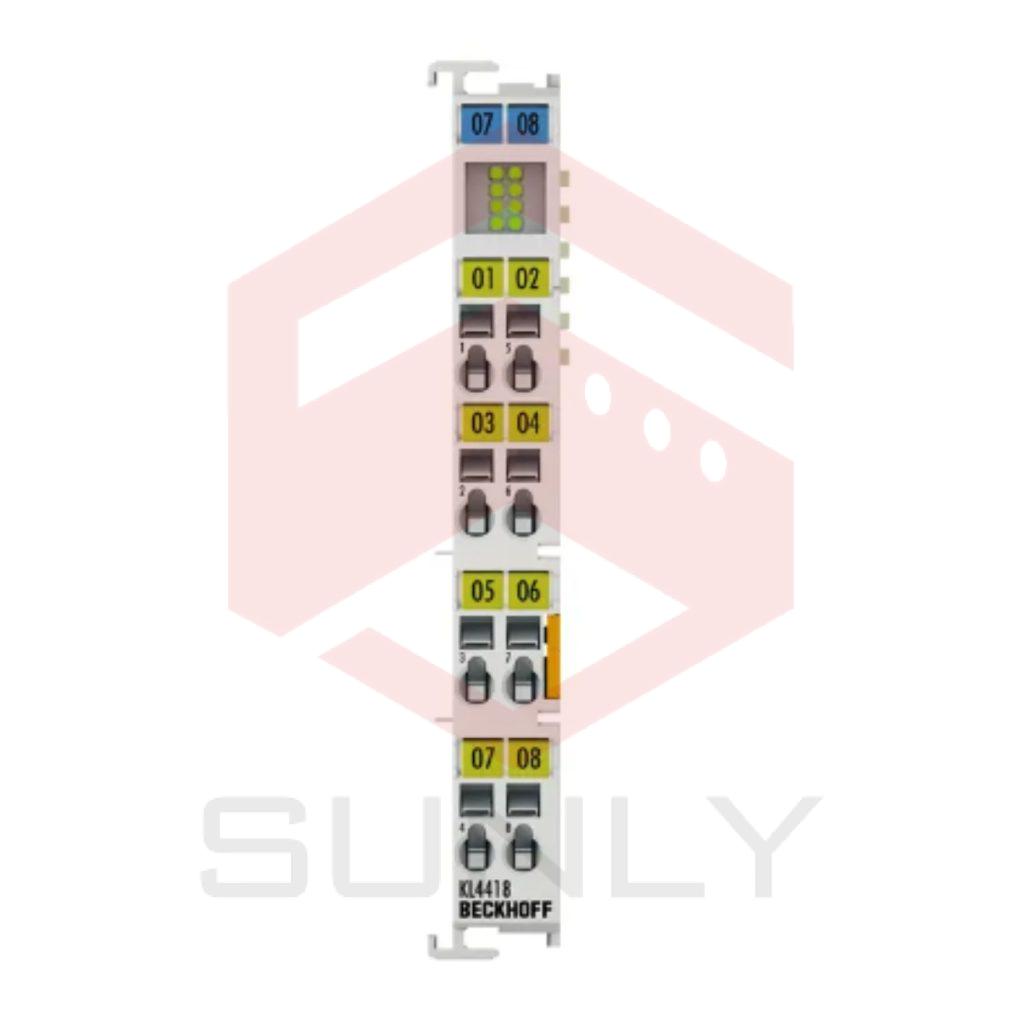

KL4418 | Bus Terminal, 8-channel analog output, current, 0…20 mA, 12 bit, single-ended

KL4418 | Bus Terminal, 8-channel analog output, current, 0…20 mA, 12 bit, single-ended

The KL4418 analog output terminal generates signals in the range between 0 to 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output stage is powered by the 24 V supply. The KL4418 combines eight channels in one housing and is particularly suitable for space-saving installation in control cabinets. The use of single conductor connection technology enables the connection of multi-channel actuator technology with minimum space requirements.

The Bus Terminal has a common ground potential. The power contacts are connected through. The reference ground of the outputs is the 0 V power contact. The LEDs indicate the data exchange with the Bus Coupler.

Technology single-ended

Number of outputs 8

Power supply 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515)

Signal current 0…20 mA

Load < 150 Ω (short-circuit proof)

Output error < ±0.2 % (relative to end value)

Resolution 12 bit

Conversion time ~ 8 ms

Electrical isolation 500 V (K-bus/signal voltage)

Current consumption power contacts typ. 60 mA + load

Current consumption K-bus typ. 20 mA

Bit width in the process image output: 8 x 16 bit data (8 x 8 bit control/status optional)

Special features high packing density

Weight approx. 75 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Pluggable wiring for all KSxxxx Bus Terminals

Approvals/markings CE, UL, ATEX, IECEx, DNV GL

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: KL441x_KL442xen
