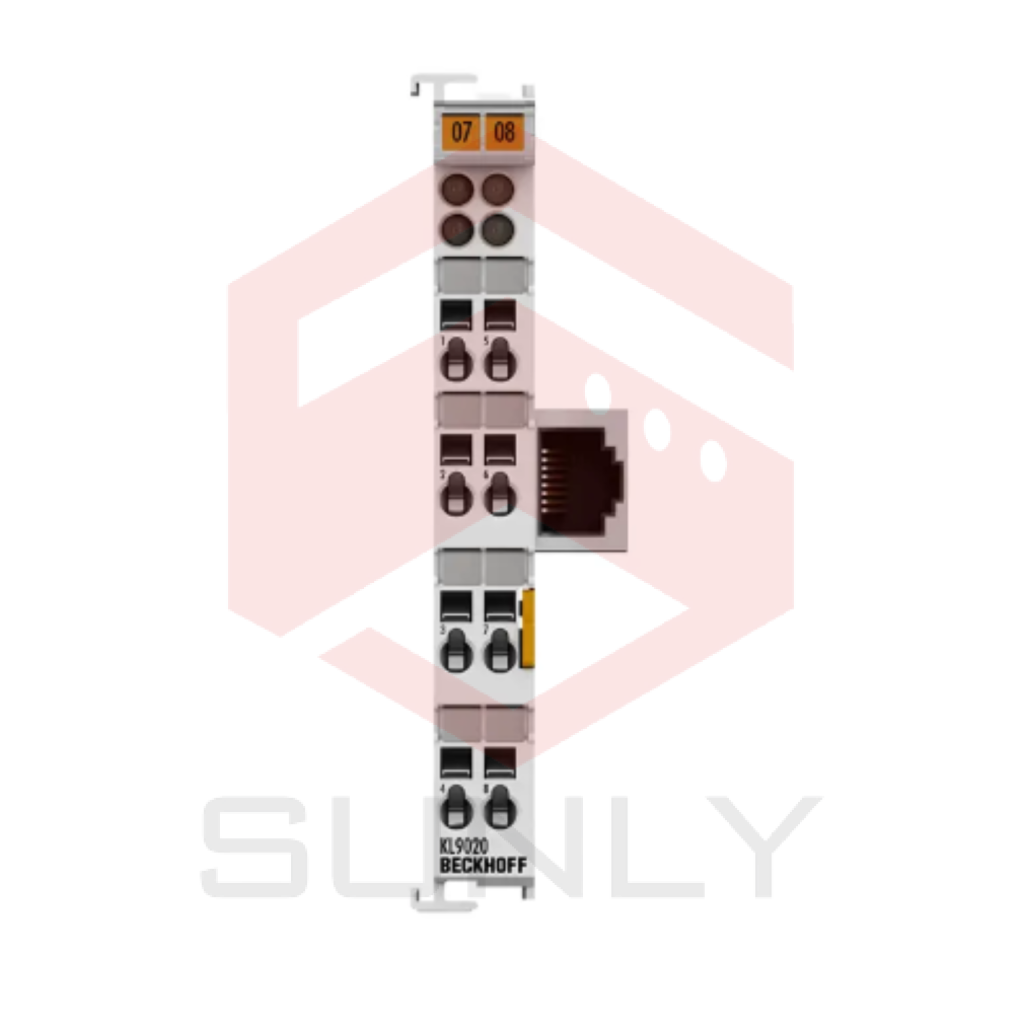

KL9020 | Terminal bus extension, end terminal

KL9020 | Terminal bus extension, end terminal

The KL9020 is attached to the end of the Bus Terminal block in the same way as the standard terminal KL9010 and terminates the terminal block. The KL9020 enables the connection of an Ethernet cable with a RJ45 plug. The K-bus signals are converted to RS485. Power to the KL9020 electronics is supplied via the K-bus. The KL9020 forms a properly working unit together with at least one KL9050. Apart from a supply voltage of 24 V and the insertion of the Ethernet cable, there is no further parameterization or configuration work necessary. The Bus Coupler carries out all diagnosis and commissioning tasks.

Type/number of peripheral signals Bus Coupler dependency

Max. number of bytes fieldbus Bus Coupler dependency

Distance between stations max. 5 m between KL9020 and KL9050

Bus interface 1 x RJ45 socket

Starting current –

Current consumption K-bus typ. 70 mA

Current supply K-bus –

Power contacts max. 24 V DC/max. 10 A

Nominal voltage –

Electrical isolation 500 V (power contact/supply voltage/K-bus)

Configuration possibility none, automatic

PE contact –

Shield connection –

Electrical connection to DIN rail –

Special features end terminal for K-bus extension, up to 31 KL9050

Weight approx. 45 g

Operating/storage temperature 0…+55°C/-25…+85°C

Relative humidity 95%, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Approvals/markings CE, UL, ATEX, IECEx, DNV GL

Ex marking ATEX:

II 3 G Ex ec IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: KL9020_KL9050en
