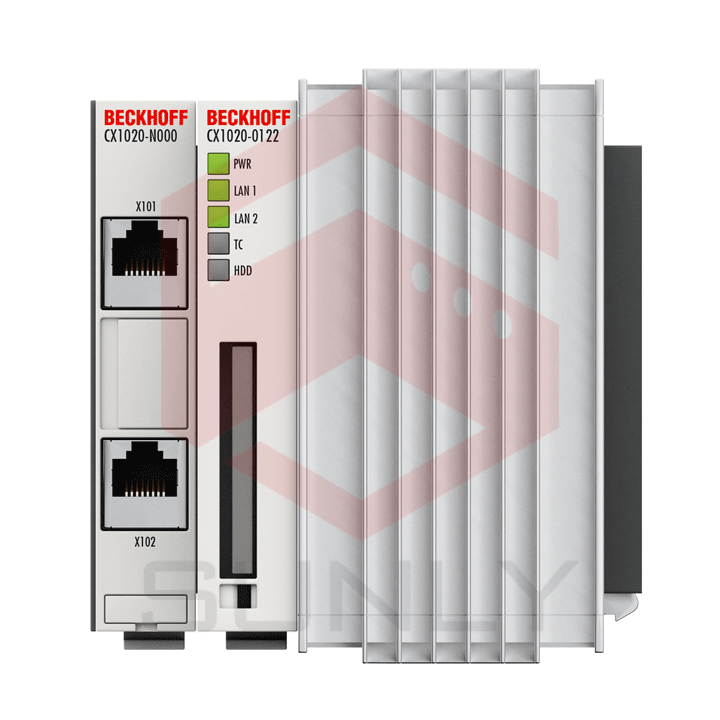

The basic CX1020 CPU module has a 1 GHz Intel® CPU. The controller does not require a fan or other rotating components. In addition to the CPU and the chipset, the CX1020 module also contains the main memory, which is available in different sizes. The controller boots from the Compact Flash.
The basic configuration of the CX1020 includes a 128 MB Compact Flash card and two Ethernet RJ45 interfaces. These interfaces are connected to an internal switch and offer a simple option for creating a line topology without the need for additional Ethernet switches. All other CX family components can be connected via the PC/104 interface that is available on both sides. The passive cooling module is included in the scope of supply. The operating system can be Windows Embedded CE 6 or Windows Embedded Standard 2009. The TwinCAT 2 automation software transforms a CX1020 system into a powerful PLC and motion control system that can be operated with or without visualization. In contrast to the CX1010, the CX1020 can also be used for interpolating axis movements with TwinCAT 2 NC I.
Further system interfaces or fieldbus connections can be added to the basic CPU module. The CPU module requires a CX1100 type power supply module. All CX1500 fieldbus modules and all CX1100 power supplies from the CX series can be used in combination with the CX1020
The Embedded PC CX1020 is also available as the ordering option CX1900-0320 with zero second level cache. Instead of the 1 GHz processor with 512 kB second level cache (L2), a less expensive variant of the processor without a second level cache (L2 = 0 kB) is used. Since the CX1900-0320 has the same 855GME chipset as the CX1020, none of the basic characteristics of the CX1020 are changed, apart from the slightly lower CPU power.
Processor Intel® Celeron® M ULV, 1 GHz clock frequency
Number of cores 1
Flash memory slot for Compact Flash card, 128 MB included (expandable)
Main memory 256 MB DDR RAM (expandable ex factory to 1 GB)
Interfaces 2 x RJ45 10/100 Mbit/s (internal switch)
Diagnostics LED 1 x power, 2 x LAN link/activity, TC status, 1 x flash access
Expansion slot 1 x Compact Flash type I+II insert with eject mechanism
Clock internal battery-backed clock for time and date (battery exchangeable)
Operating system Windows Embedded CE 6, Windows Embedded Standard 2009
Control software TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime
System bus 16 bit ISA (PC/104)
I/O connection via power supply module (E-bus, K-bus, K-bus/IP-Link)
Power supply via system bus (through CX1100-xxxx power supply modules)
Max. power consumption 11 W
Dimensions (W x H x D) 96 mm x 112 mm x 99 mm
Weight approx. 550 g
Relative humidity 95 %, no condensation
Operating/storage temperature 0…+50 °C/-25…+85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protection rating IP20
Approvals/markings CE, UL
