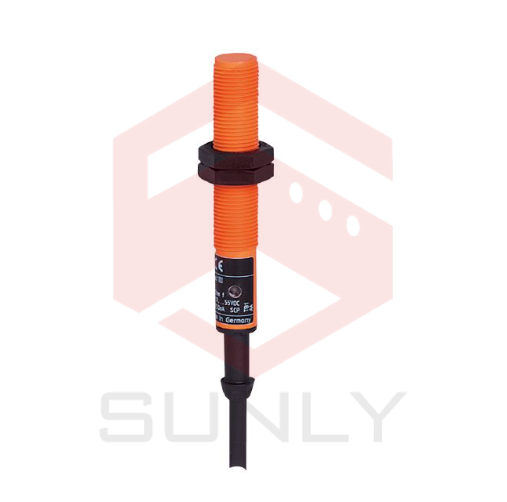

Inductive sensor
IF5317
IF-3002-APKG
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Very high switching frequency
Large operating voltage range
For a precise position detection on machines
Technical details
Product characteristics
Electrical design: PNP Output function: normally closed Sensing range [mm]: 2 Housing: Threaded type Dimensions [mm]: M12 x 1 / L = 71 |
Electrical data
Operating voltage [V]: 10…36 DC Current consumption [mA]: 15; (24 V) Protection class: II Reverse polarity protection: yes |
Outputs
Electrical design: PNP Output function: normally closed Max. voltage drop switching output DC [V]: 2.5 Permanent current rating of switching output DC [mA]: 250 Switching frequency DC [Hz]: 800 Short-circuit protection: yes Type of short-circuit protection: yes (non-latching) Overload protection: yes |
Monitoring range
Sensing range [mm]: 2 |
Real sensing range Sr [mm]: 2 ± 10 %
Operating distance [mm]: 0…1.6 |
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 Hysteresis [% of Sr]: 1…15 Switch-point drift [% of Sr]: -10…10 |
Operating conditions
Ambient temperature [°C]: -25…80 Protection: IP 67 |
Tests / approvals
EMC: EN 60947-5-2, EN 55011, class B MTTF [years]: 898 |
Mechanical data
Weight [g]: 87 Housing: Threaded type Mounting: flush mountable Dimensions [mm]: M12 x 1 / L = 71 Thread designation: M12 x 1 Material: PBT |
Displays / operating elements
Display: Switching status: 1 x LED, yellow |
Accessories
Items supplied: lock nuts: 2 Remarks Pack quantity: 1 pcs |
Electrical connection
Connection: Cable: 2 m, PVC; 3 x 0.34 mm² |
