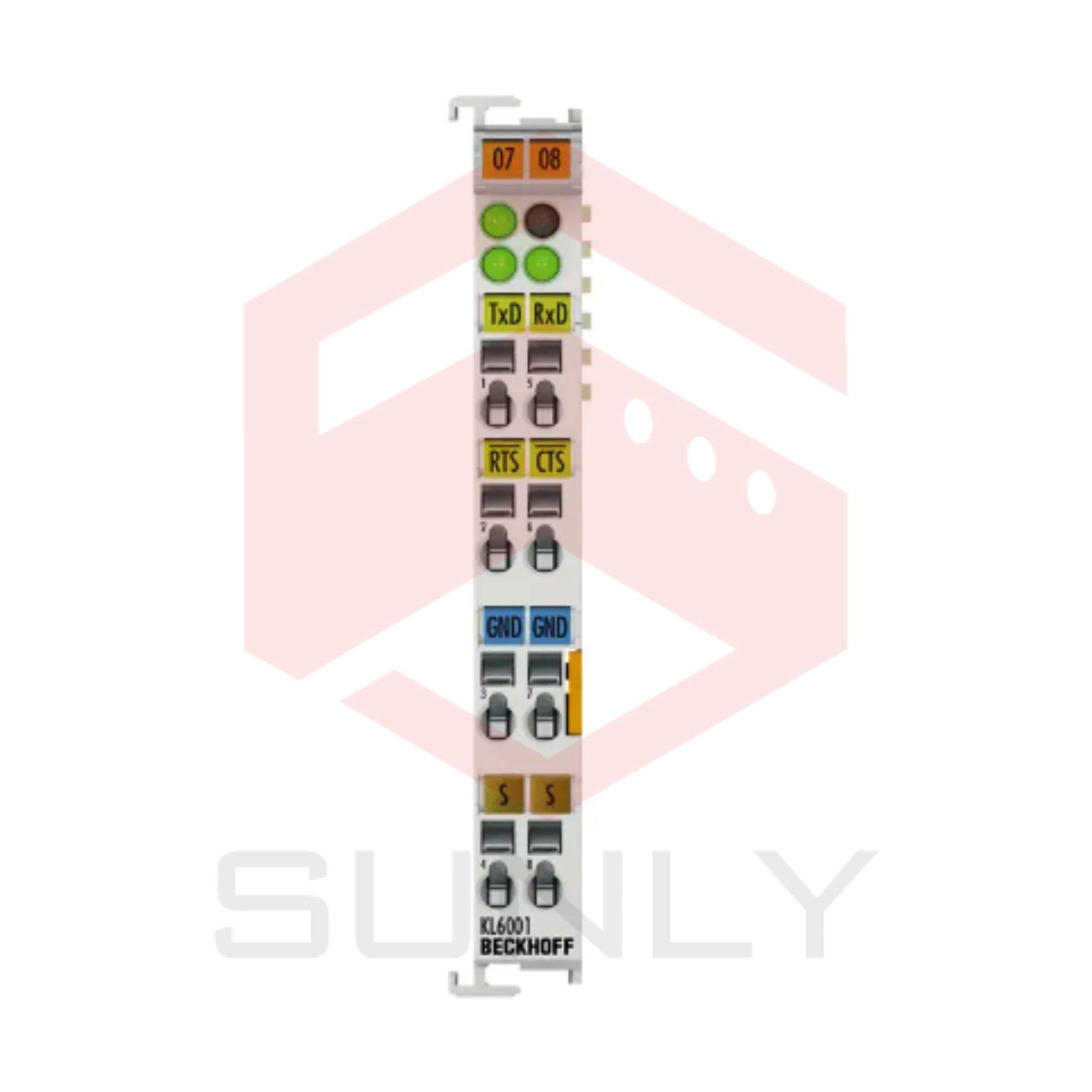

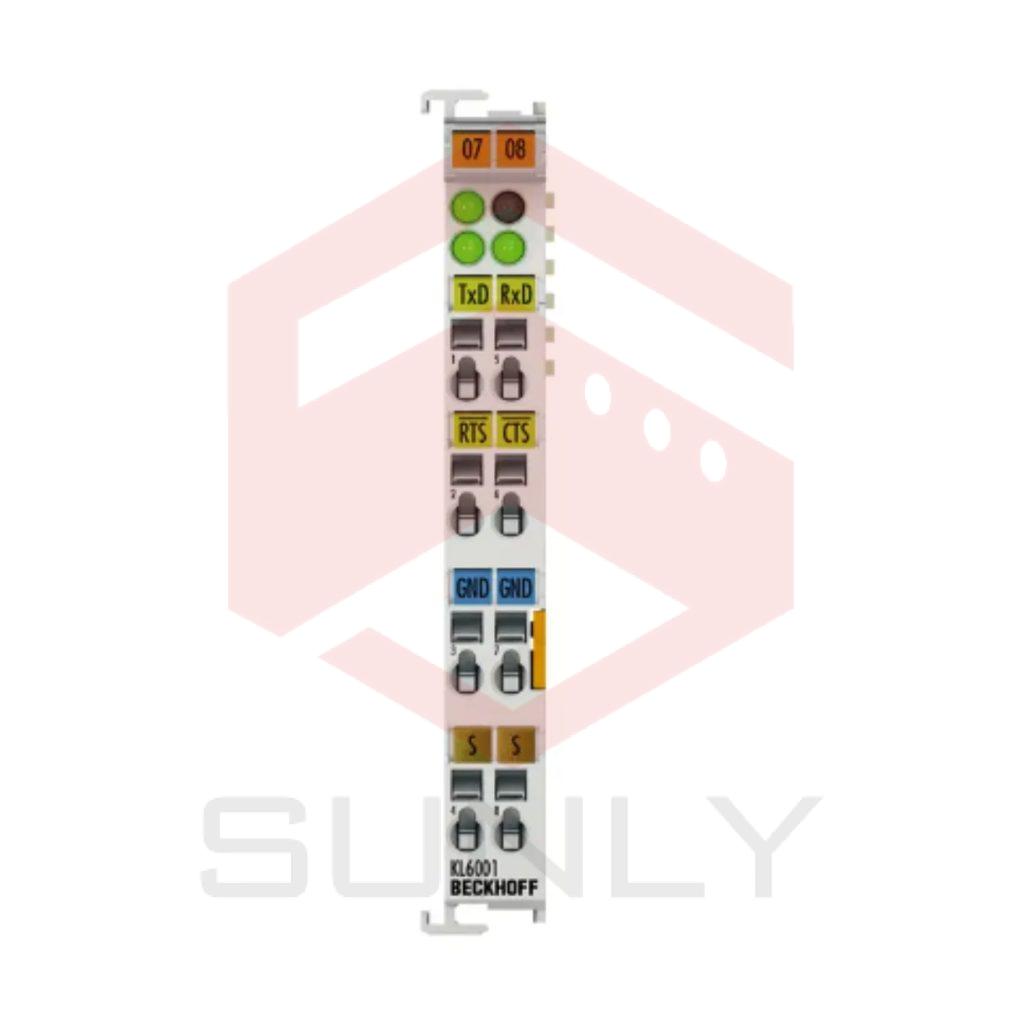

KL6001 | Bus Terminal, 1-channel communication interface, serial, RS232

KL6001 | Bus Terminal, 1-channel communication interface, serial, RS232

The KL6001 serial interface allows devices with an RS232 interface to be connected. The interface operates in conformity with the CCITT V.28/DIN 66 259-1 standards. The device connected to the terminal communicates with the automation device via the Bus Coupler. The active communication channel operates independently of the higher-level bus system in full duplex mode at up to 19,200 baud. The RS232 interface guarantees high immunity to interference through electrically isolated signals.

Technology RS232

Data transfer channels 2 (1/1), TxD and RxD, full duplex

Data transfer rates 1200…19,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit

Bit distortion < 3 %

Line impedance –

Cable length max. 15 m

“0” signal voltage -18…-3 V

“1” signal voltage 3…18 V

Power supply via the K-bus

Current consumption K-bus typ. 55 mA

Current consumption power contacts – (no power contacts)

Electrical isolation 500 V (K-bus/signal voltage)

Data buffer 128 bytes receive buffer, 16 bytes transmit buffer

Bit width in the process image input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible)

Configuration no address setting, configuration via Bus Coupler or controller

Special features high interference immunity, electrically isolated signals

Weight approx. 80 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Pluggable wiring for all KSxxxx Bus Terminals

Approvals/markings CE, UL, ATEX, IECEx

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: kl6001en
