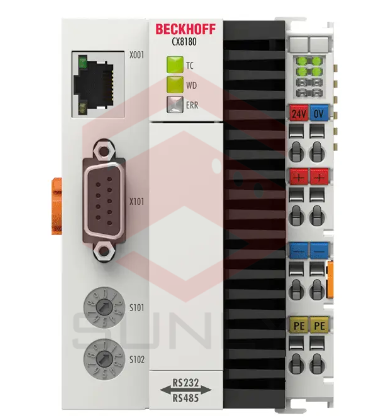

The CX8180 has two serial interfaces: one with RS232 and one with physical RS485. Both serial interfaces are on the D-sub socket. They are not tied to a specific protocol and can be used with appropriate TwinCAT 3 functions for various serial communication protocols. E-bus or K-bus terminals can be mounted upon request; The CX8180 automatically recognizes the type of I/O system connected during the boot phase. The control system is programmed using TwinCAT 3 via Ethernet interface . TwinCAT 3 licenses must be ordered through the TwinCAT 3 price list.
Other TwinCAT 3 functions and protocols are available for the CX8180, for example OPC UA , MQTT, Modbus TCP or Modbus RTU. All functions and protocols can be found in the TwinCAT product finder if you set the TwinCAT 3 platform level filter to P20.
| Specifications | CX8180 |
|---|---|
| Processor | CÁNH TAY Cortex™-A9, 800 MHz (TC3: 20) |
| Number of cores | 1 |
| Flash memory | microSD card slot, including 512 MB (expandable) |
| Main memory | 512 MB DDR3 RAM (not expandable) |
| Persistent memory | 1 second UPS (for 1 MB continuous data) |
| Display | 1 x RJ45 10/100 Mbit/s, 1 x bus interface |
| Bus interface | D-sub socket, 9-pin, 1 x RS232, 1 x RS485 |
| Data transmission speed | 300 baud…115 kbaud |
| Diagnostic LED light | 1 x TC status, 1 x WD, 1 x error |
| Clock | watch supports internal battery for date and time (battery behind front cover, changeable) |
| Operating system | Compact Embedded Windows 7 |
| Control software | TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic identification |
| Power supply | 24 V DC (-15 %/+20 %) |
| E-bus/K-bus current supply | 2 A |
| Max. Energy consumption | 4 W |
| Max. Power consumption (with UPS load) | 9 W |
| Dimensions (W x H x D) | 71 mm x 100 mm x 73 mm |
| Weight | about 230 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95%, no condensation |
| Anti-vibration/shock | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | Complies with EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approve/mark | CE, UL |
| TwinCAT 3 platform level | Economics (20); Please see here for an overview of all TwinCAT 3 platform levels |
>>> REFER TO TECHNICAL DOCUMENT: cx8180_en
