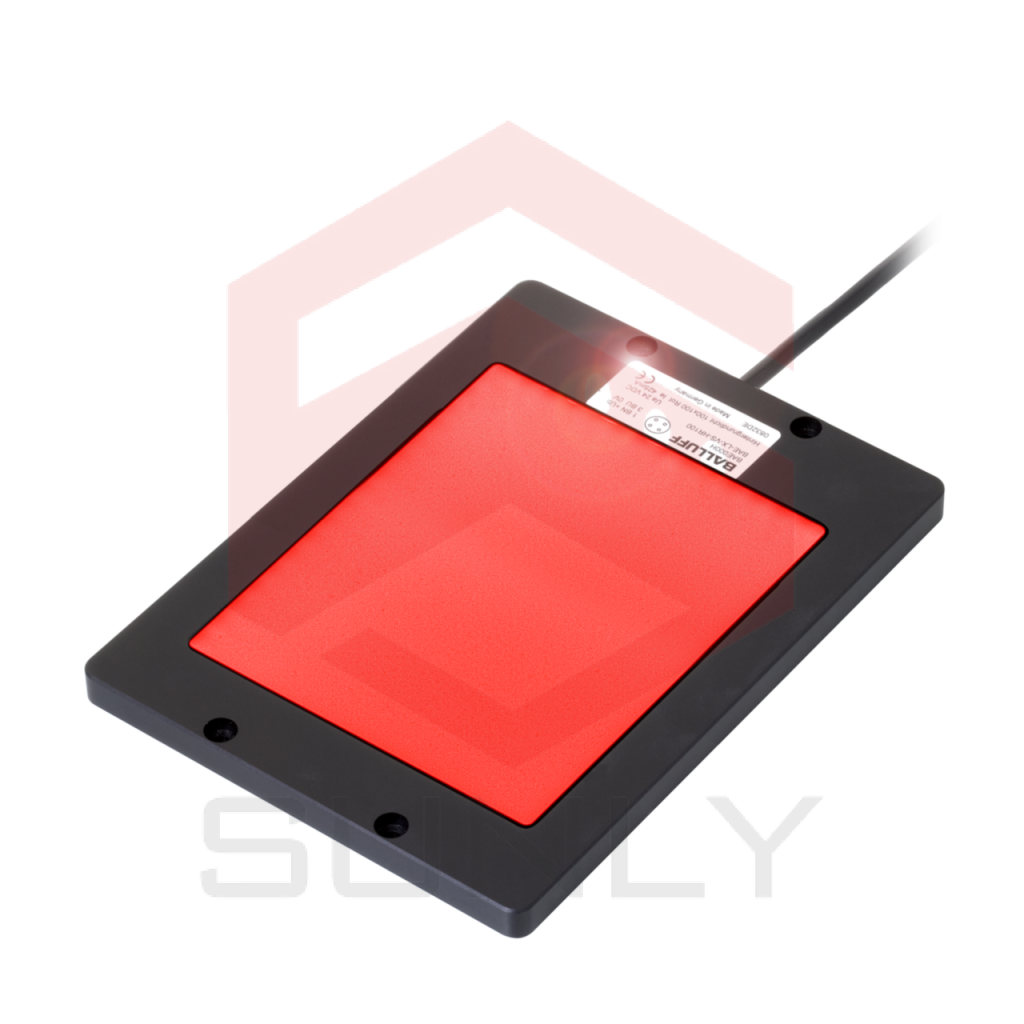

Background lights Balluff BAE LX-VS-HR150

Current draw max. 500 mA
Rated operating voltage Ue DC 24 V

Beam angle 80 ° x 60 °
Illumination area 150 x 100 mm
Illuminence (0.1 m) 4800 Lux
LED group per IEC 62471 Exempt Group
Light type LED, red light
Wave length 617 nm
