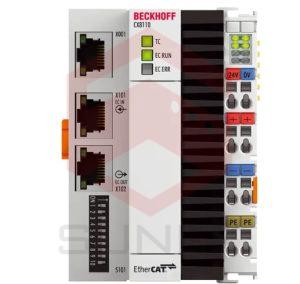

The CX8110 is a control system with EtherCAT slave interface. The DIP switch enables fixed or automatic addressing in the EtherCAT network. E-bus or K-bus terminals can be attached as required; the CX8110 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list.
Further TwinCAT 3 functions and protocols are available for the CX8110, for example OPC UA, MQTT, Modbus TCP or Modbus RTU. All functions and protocols can be found in the TwinCAT product finder if you set the filter under TwinCAT 3 platform level to P20.
Product status:
regular delivery
Product information
| Technical data | CX8110 |
|---|---|
| Processor | ARM Cortex™-A9, 800 MHz (TC3: 20) |
| Number of cores | 1 |
| Flash memory | slot for microSD card, 512 MB included (expandable) |
| Main memory | 512 MB DDR3 RAM (not expandable) |
| Persistent memory | 1-second UPS (for 1 MB persistent data) |
| Interfaces | 1 x RJ45 10/100 Mbit/s, 1 x bus interface |
| Bus interface | EtherCAT IN and OUT (2 x RJ45) |
| Data transfer rates | 100 Mbit/s |
| Diagnostics LED | 1 x TC status, 1 x EC Run, 1 x EC Err |
| Clock | internal battery-backed clock for time and date (battery behind the front flap, exchangeable) |
| Operating system | Windows Embedded Compact 7 |
| Control software | TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 4 W |
| Max. power consumption (with loading UPS) | 9 W |
| Dimensions (W x H x D) | 71 mm x 100 mm x 73 mm |
| Weight | approx. 230 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
| TwinCAT 3 platform level | Economy (20); please see here for an overview of all the TwinCAT 3 platform level |
