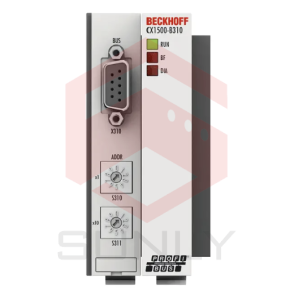

The CX1500-B310 PROFIBUS slave fieldbus connection enables the fieldbus integration of a CX1010/CX1020/CX1030 system as a slave controller that can receive or process data from the master, or send back data from its own process periphery to the master controller, either directly or processed. Each slave connection in the CX system contains a DPRAM as an interface between PROFIBUS and the CX CPU module. It serves as memory for I/O data and can be addressed by the CPU module via the internal ISA bus. The use of fieldbus slave modules enables the configuration of complex or modular systems. Parallel operation of several slave connections is also possible, e.g. two PROFIBUS slaves or one PROFIBUS slave and one CANopen slave can exist simultaneously within the same system.
Technical data | CX1500-B310 |
---|---|
Fieldbus | PROFIBUS DP, DP-V1, DP-V2 (MC) |
Data transfer rates | 9.6 kbaud…12 Mbaud |
Bus interface | 1 x D-sub socket, 9-pin |
Bus device | max. 125 slaves |
Max. number of bytes | max. 244 byte input/244 byte output |
Max. power loss | 1.8 W |
Dimensions (W x H x D) | 38 mm x 100 mm x 91 mm |
Weight | approx. 190 g |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Driver | only compatible with TwinCAT 2 |
Protection rating | IP20 |
Approvals/markings | CE, UL |
