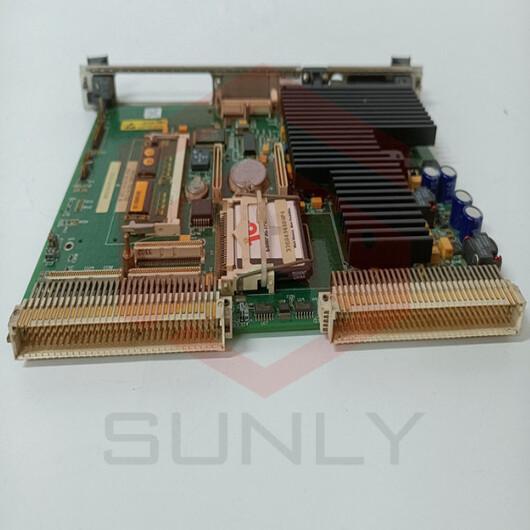

IS215UCVGH1A – VME CONTROLLER CARD

Part No: IS215UCVGH1A

Manufacturer: General Electric

Product Type: VME Controller Card

Series: Mark VI

Microprocessor: Intel Ultra Low Voltage Celeron 650 MHz

Memory: 128 MB SDRAM

Operating System: QNX

Primary Ethernet: 10BaseT/100BaseTX

Operating temperature: 0 to 70o C

Power Supply Voltage: 24 V dc

Board Size: 2.8 cm high x 8.6 cm

Weight: 0.45 kg

Availability: In Stock

Country of Origin: USA

Manual: GEH-6421J

IS200EBACG2A is a VME Controller Card manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Control Systems. The Intel® Ultra Low Voltage CeleronTM 650 MHz processor powering the single-slot UCVG board has 128 MB of flash memory and 128 MB of SDRAM. Connectivity is provided by two 10BaseT/100BaseTX (RJ-45 connection) Ethernet ports. The UCVG’s initial Ethernet port enables peer-to-peer communication and connecting to the UDH for configuration. The second Ethernet port on the UCVG can be utilized for a private EGD network or Modbus on a different IP logical subnet. Through the toolbox, the second Ethernet port can be configured. Every time the rack is powered up, the controller verifies the toolbox configuration versus the installed hardware.
