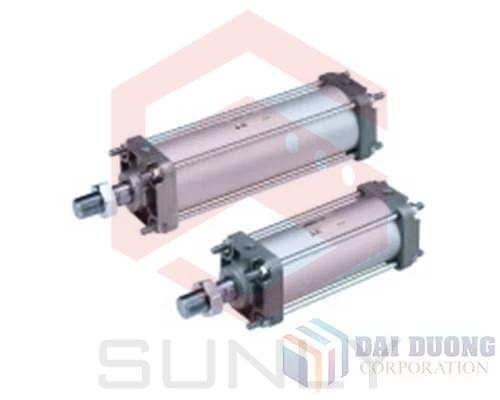

JMB series single rod double acting SMC air cylinder

Product information:
• Action: Double action, single bar
• Translation: Aviation
• Proof pressure: 1.0 MPa
• Maximum operating pressure: 0.7 MPa
• Minimum operating pressure: 0.05 MPa
• Ambient and liquid temperature: 5 to 60°C
• Lubrication: Not necessary (no lubrication)
• Piston speed: 50 to 500 mm/s
• Stroke length tolerance: 0 to 2 mm
• Padding: Non-adjustable air cushion + rubber bumper
• Connection port size (Rc, NPT, G):
• 1/8 (caliber 32 mm / 40 mm / 45 mm / 50 mm / 56 mm)
• 1/4 (caliber 63 mm / 67 mm / 80 mm / 85 mm)
• 3/8 (caliber 100 mm)
• Mounting: Basic type
