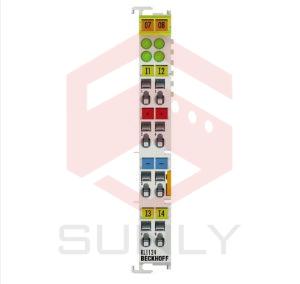

The KL1124 digital input terminal acquires the binary 5 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains four channels that indicate its signal state by means of light emitting diodes. The 5 V supply voltage can be generated with the power supply terminal and fed into the power contacts.
Special features:
- 5 V inputs
- low delay due to 0.2 ms input filter
- +5 V and 0 V DC sensor supply connections
| Technical data | KL1124 |
|---|---|
| Connection technology | 2-/3-wire |
| Number of inputs | 4 |
| Nominal voltage | 5 V DC |
| “0” signal voltage | < 0.8 V |
| “1” signal voltage | > 2.4 V |
| Input filter | typ. 0.2 ms |
| Input current | typ. 50 µA |
| Current consumption K-bus | typ. 5 mA |
| Current consumption power contacts | typ. 1 mA + load |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 4 inputs |
| Configuration | no address or configuration setting |
| Special features | supply 5 V DC via power contacts |
| Weight | approx. 50 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
