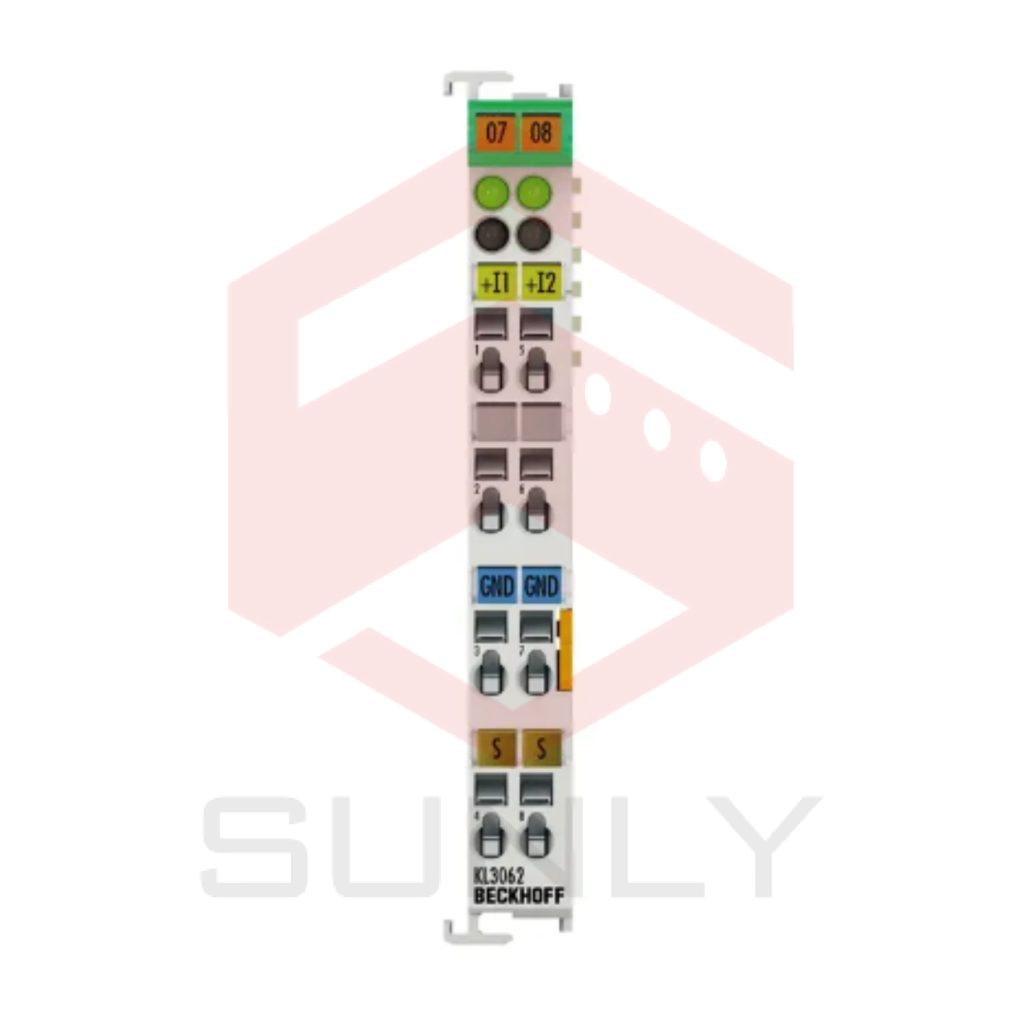

KL3062 | Bus Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

KL3062 | Bus Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

The KL3062 analog input terminal handles signals in the range from 0 to 10 V. The voltage is digitized to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the Bus Terminal have a common ground potential, the reference ground. The run LEDs give an indication of the data exchange with the Bus Coupler.

Number of inputs 2

Power supply via the K-bus

Signal voltage 0…10 V

Technology single-ended

Internal resistance typ. > 200 kΩ

Common-mode voltage UCM –

Conversion time ~ 2 ms

Resolution 12 bit

Measurement error/ uncertainty < ±0.3 % (relative to full scale value)

Electrical isolation 500 V (K-bus/signal voltage)

Current consumption power contacts – (no power contacts)

Current consumption K-bus typ. 60 mA

Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional)

Configuration no address or configuration setting

Weight approx. 60 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Approvals/markings CE, UL, ATEX, IECEx

Pluggable wiring for all KSxxxx Bus Terminals

Ex marking ATEX:

II 3 G Ex ec IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: KL306xen
