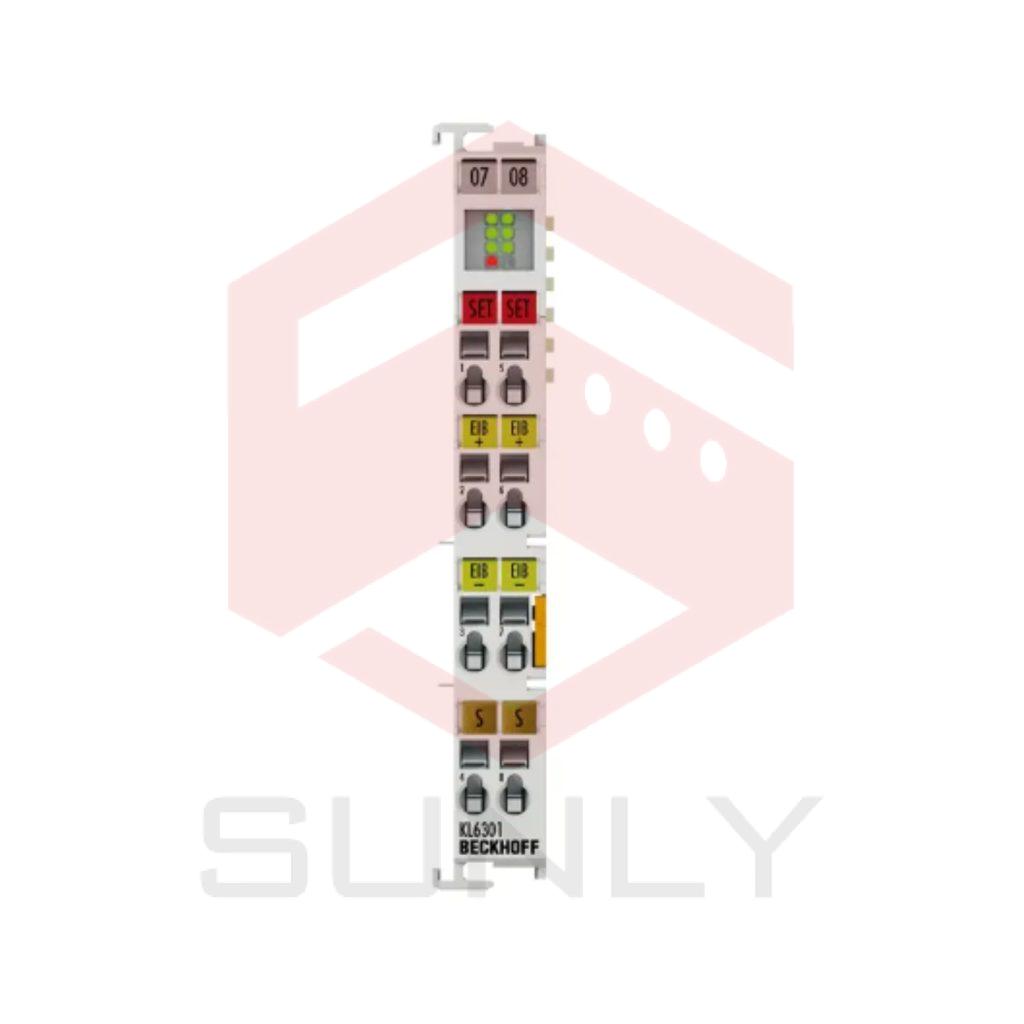

KL6301 | Bus Terminal, 1-channel communication interface, KNX/EIB

KL6301 | Bus Terminal, 1-channel communication interface, KNX/EIB

The KL6301 KNX/EIB Bus Terminal is integrated in an KNX/EIB network and can receive/transmit data from/to other KNX/EIB devices. Due to the integration in the Bus Terminal system, KNX/EIB components can also be integrated in higher-level bus systems such as Ethernet. The Bus Terminal is commissioned or configured via TwinCAT function blocks. Status LEDs directly indicate the bus status. The KNX/EIB terminal operates independent of the bus system used. Several KL6301 can be used with a single Bus Coupler or a Bus Terminal Controller. Up to 256 group addresses can be received; sending is only limited by the application.

Technology KNX/EIB

Number of channels 1

Data transfer standard twisted pair (TP)

Connection 2-wire

Data transfer channels 1

Data transfer rates 9600 baud

Bus access CSMA/CA

Cable length –

Current consumption K-bus typ. 55 mA

Current consumption power contacts –

Short-circuit proof yes

Electrical isolation 500 V (K-bus/EIB)

Bit width in the process image input/output: 24 bytes

Configuration TwinCAT (function blocks)

Nominal voltage 24 V DC (-15 %/+20 %)

Input voltage 24 V DC (-15 %/+20 %)

Special features TwinCAT library: TwinCAT PLC EIB

Weight approx. 85 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Approvals/markings CE, UL, ATEX, IECEx

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: kl6301en
