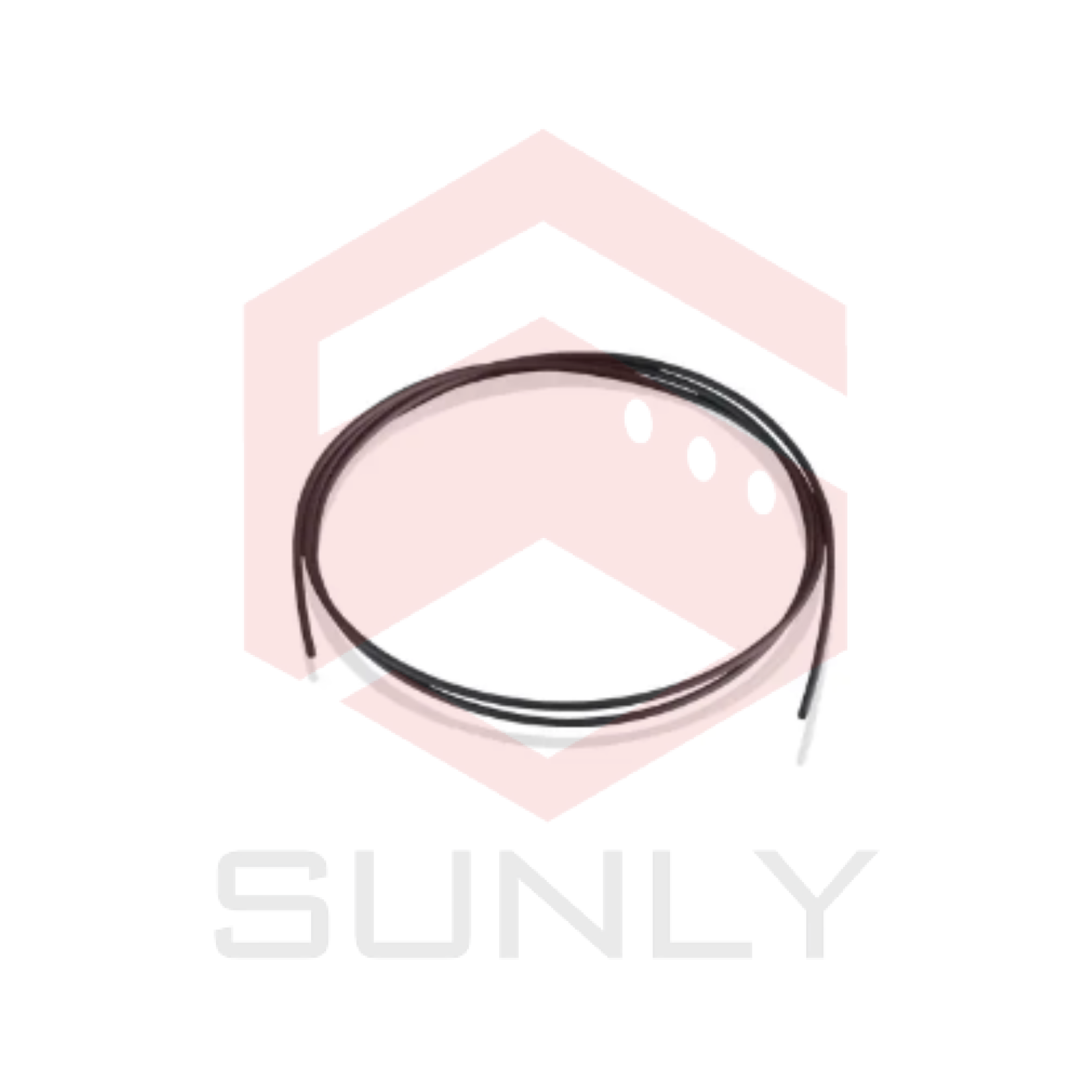

Z1100 | Fiber-optic conductor for Bus Coupler BK2xxx (Lightbus)

Plastic fiber optic, core Ø 1000 μm, single core, Ø 2.2 mm

Technical data

Refraction index core 1,49

Refraction index mantle 1,41

Acceptable temperature range – 20 °C till + 80 °C

Temperature range short-time Bis + 100 °C

Numerical Apertur 0,48

Bending radius 30 mm

Acceptable tensile loading 100 N

High voltage stability 110 kV/m

Core diameter 976 µm

Cladding diameter 1000 µm

External diameter 2.2 mm

Attenuation at 660 nm 125 dB/km typ.

Bandwith 1 Mbps x 100 m

>>> Refer to technical document: z1100_en
