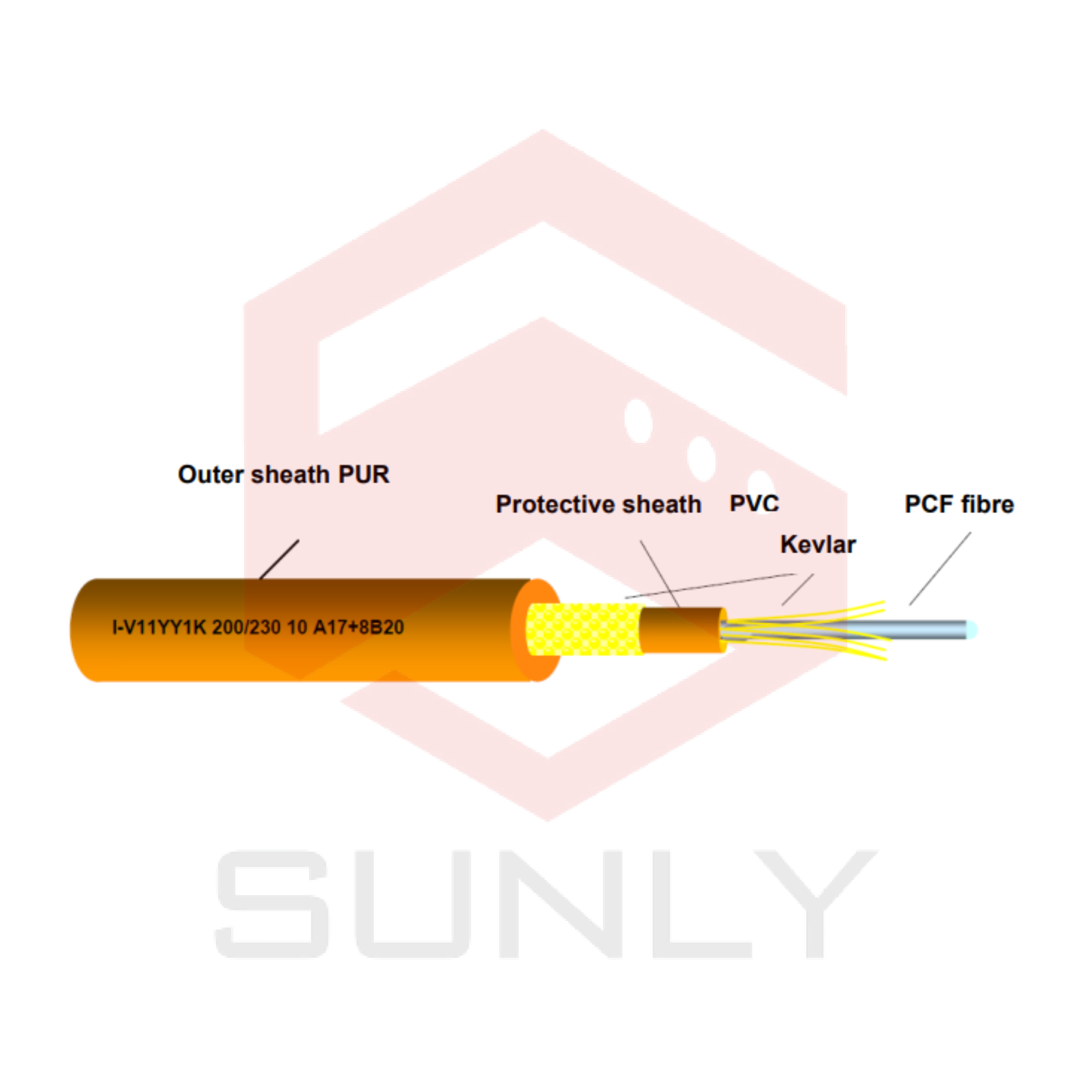

Z1111  | PCF- fiber optic simplex cable

Technical data

Outer sheath PUR orange

Protective sheath PVC orange

Operating temperature -20…+70°C

Storage temperature -40…+70°C

Numerical aperture 0,37

Bending radius at installation Min. 60 mm

Bending radius Min. 40 mm

High flexibility test Min. 300000 (Radius 50mm) Cycles

Tensile strength at installation Max. 200 N

Tensile strength continually Max. 90 N

Core diameter of the single fiber 2500 µm

Cladding diameter 230 µm

Protective sheath 2,2 mm

Outer diameter 5,0 mm

Attenuation at 650 nm Max. 10 dB/km

Attenuation at 850 nm Max. 8 dB/km

Weight 22 kg/km
