The system modules are connected to the CPU on the left side via a multi-pin connector. Internally they are connected via PCI Express. For the CX20xx series, up to four modules can be connected in any order. A module can be connected to CX52x0, CX53x0 or CX56x0.

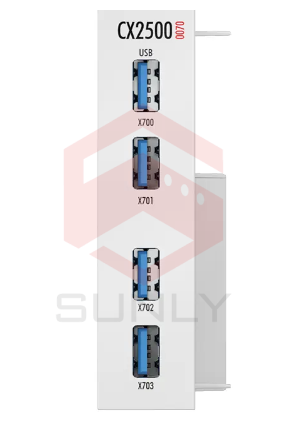

The CX2500-0070 USB module adds four additional USB 3.0 interfaces.
Specifications | CX2500-0070 |
---|---|
Display | 4 x USB 3.0 (maximum total current 2 A) |
Connection type | 4 x USB 3.0, type A |
Power supply | via system bus (via CX2100-0xxx power supply modules) |
Dimensions (W x H x D) | 24 mm x 99 mm x 54,5 mm |
Weight | about 195 g |
Relative humidity | 95%, no condensation |
Operating/storage temperature | -25…+60 °C/-40…+85 °C |
Anti-vibration/shock | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | Complies with EN 61000-6-2/EN 61000-6-4 |
Protection rating | IP20 |
>>>REFER TO TECHNICAL : cx2500-0070en
