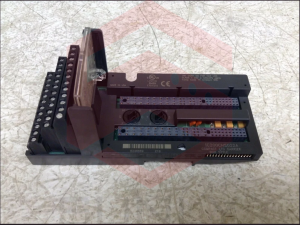

Rotary EncoderThe C200CHS022 is a compact style I/O box manufactured by GE Fanuc for the GE Versamax product line. This module has 36 IEC style ports. It supports backplane communications, mounting and field wiring for one Input/Output module and can provide connectivity to up to 32 I/O points and four common power connections.
Other features of the IC200CHS022 include easy rotary locks that assist with installation; keys are located to match the lock at the base of the module; male-female connection facilitates quick installation backplane connection eliminating the need for additional tools/cables; a module latch hole that fastens the module securely to the carrier; and a foldable printed connector card that can be inserted into the existing card holder.
The IC200CHS022 easily snaps onto 7.5 mm x 35 mm DIN rail. To provide EMC protection, the DIN rail must be electrically grounded. The rail shall have a conductive corrosion resistant finish, preferably an unpainted finish. For applications requiring maximum resistance to mechanical vibration and shock, the carrier must also be panel mounted.
The IC200CHS022 is equipped with a card holder that rotates the terminal wiring. The wiring card provided with the I/O module can be inserted in the holder.During system operation, the card holder must be retracted.
SUNLY is proud to be a GE Fanuc||Emerson agent in Vietnam, providing customers with genuine products that are highly appreciated for their quality, durability and design. With low prices and diverse products, customers can easily choose and use.
Specifications:
| Item | Performance characteristics |
| CE marked directive compliance | EMC Directive, RoHS Directive |
| Supply voltages | 12 to 24 V DC +10 -15 % Ripple PP 10% or less |
| Energy consumption | Normal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)
ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage) |
| Output | NPN open transistorcurrent Maximum sink current: 100 mA
【Application voltage: 30 V DC or less (between output and 0 V) Residual voltage: 2 V or less (at maximum sink current) |
| Output: Output operation | Can switch to Light-ON or Dark-ON mode using L/D mode |
| Output: Short circuit protection | Unify |
| Response time | FAST: 60μs or less, STD: 250μs or less, LONG: 2ms or less, U-LG: 4ms or less, HYPR: 24ms or less, selectable |
| Sensitivity settings | 2-point teaching / Limited teaching / Fully automatic teaching / Manual adjustment |
| Set light sensitivity | Consolidation, 4 steps |
| The scope displays incident light intensity | FAST/STD: 0 to 4,000, LONG: 0 to 8,000, U-LG/HYPR: 0 to 9,999 |
| Timer function | Combined with effective or ineffective OFF-delay / ON-delay / One-shot / switchable |
