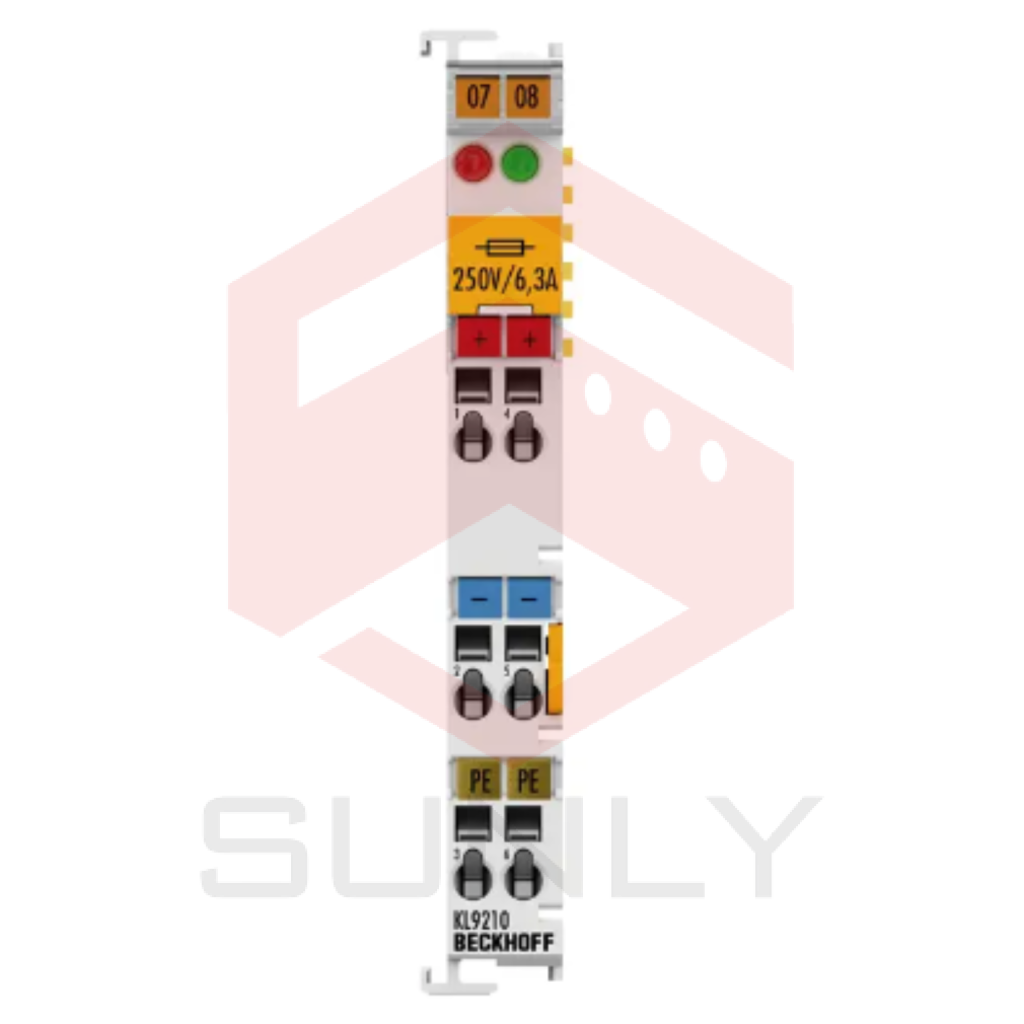

KL9210 | Potential supply terminal, 24 V DC, with diagnostics and fuse

KL9210 | Potential supply terminal, 24 V DC, with diagnostics and fuse

The KL9210 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC. In order to monitor the supply voltage, the terminal with diagnostics reports the status of the power feed terminal to the Bus Coupler through two input bits. It is thus possible for the controller to check the distributed peripheral voltage over the fieldbus.

Current load ≤ 10 A

Integrated fine-wire fuse …6.3 A

Power LED green

Defect LED red

Diagnostics yes

Current consumption K-bus typ. 10 mA

Nominal voltage 24 V DC

Electrical isolation yes

Reported to K-bus yes

PE contact yes

Shield connection –

Renewed infeed –

Connection facility to additional power contact 1

K-bus, looped through yes

Bit width in the process image 2

Electrical connection to DIN rail –

Housing width 12 mm

Special features integrated fuse

Weight approx. 55 g

Side by side mounting on Bus Terminals with power contact yes

Side by side mounting on Bus Terminals without power contact yes

Operating/storage temperature -25…+60 °C/-40…+85 °C

Approvals/markings CE, UL, ATEX, IECEx, DNV GL

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document: kl91xx_kl92xxen
