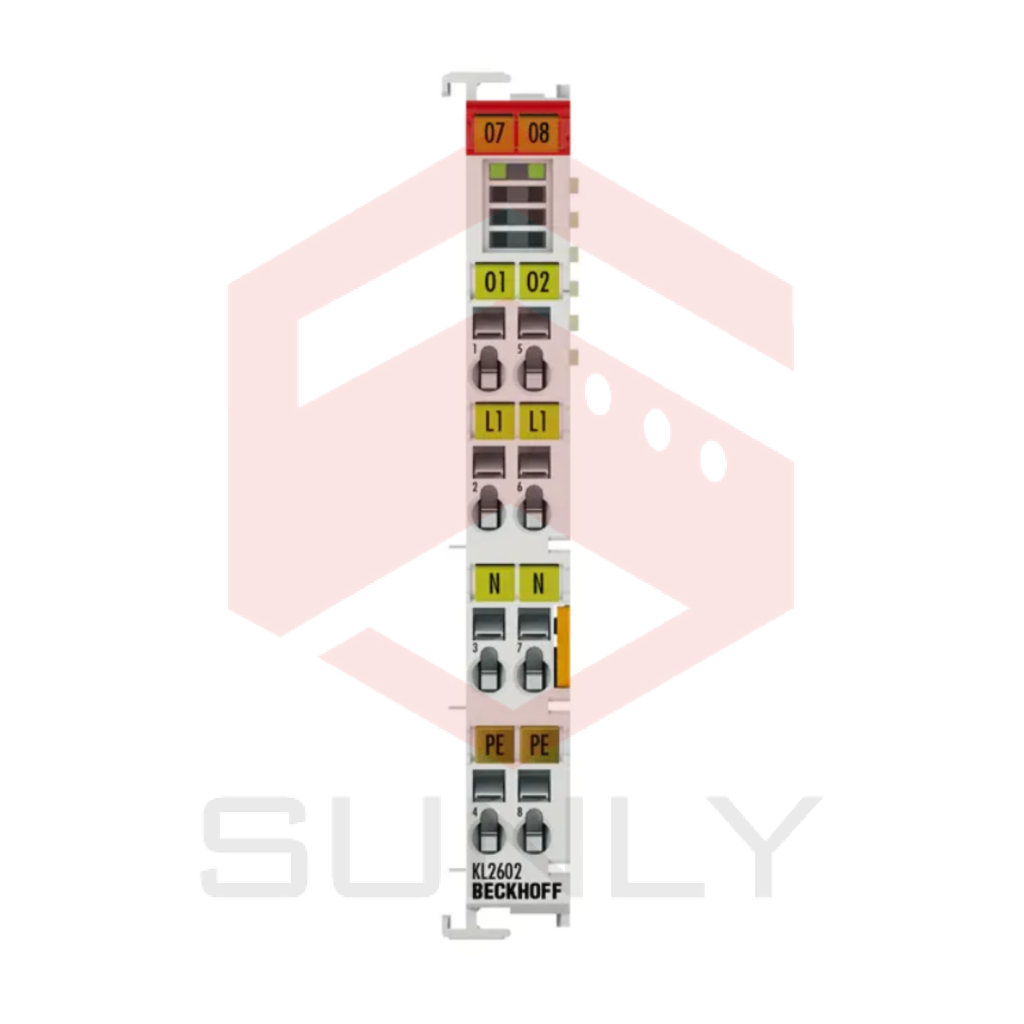

KL2602 | Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A

The KL2602 output terminal has two relays, each with a single contact, and can be used to switch devices requiring mains power and operating at up to 230 V AC. The relay contacts of the KL2602 are connected to the power contacts.

Number of outputs 2 x make contacts for power contact

Nominal voltage 230V AC/30V DC

Load type ohmic, inductive, lamp load

Max. output current 5 A per channel

Switching current 5 A AC/DC (ohmic)/2 A AC/DC (inductive)

Ohmic switching current 5 A AC/DC

Inductive switching current 2 A AC/DC

Minimum permitted load 10 mA at 5 V DC

Lamp test, electronic ballast max. 5 A starting current (4 x 58 W)

Electrical isolation 500 V (K-bus/field potential)

Current consumption power contacts load only

Current consumption K-bus typ. 80 mA

Bit width in the process image 2 outputs

Operating cycles mech. (min.) 2 x 107

Operating cycles electr. (min.) 1 x 105 (5A/30VDC)

Configuration no address or configuration setting

Special features power relay

Weight approx. 85 g

Operating/storage temperature -25…+60 °C/-40…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Pluggable wiring for all KSxxxx Bus Terminals

Approvals/markings CE, UL, DNV GL

Ex marking II 3 G Ex nA IIC T4 Gc
