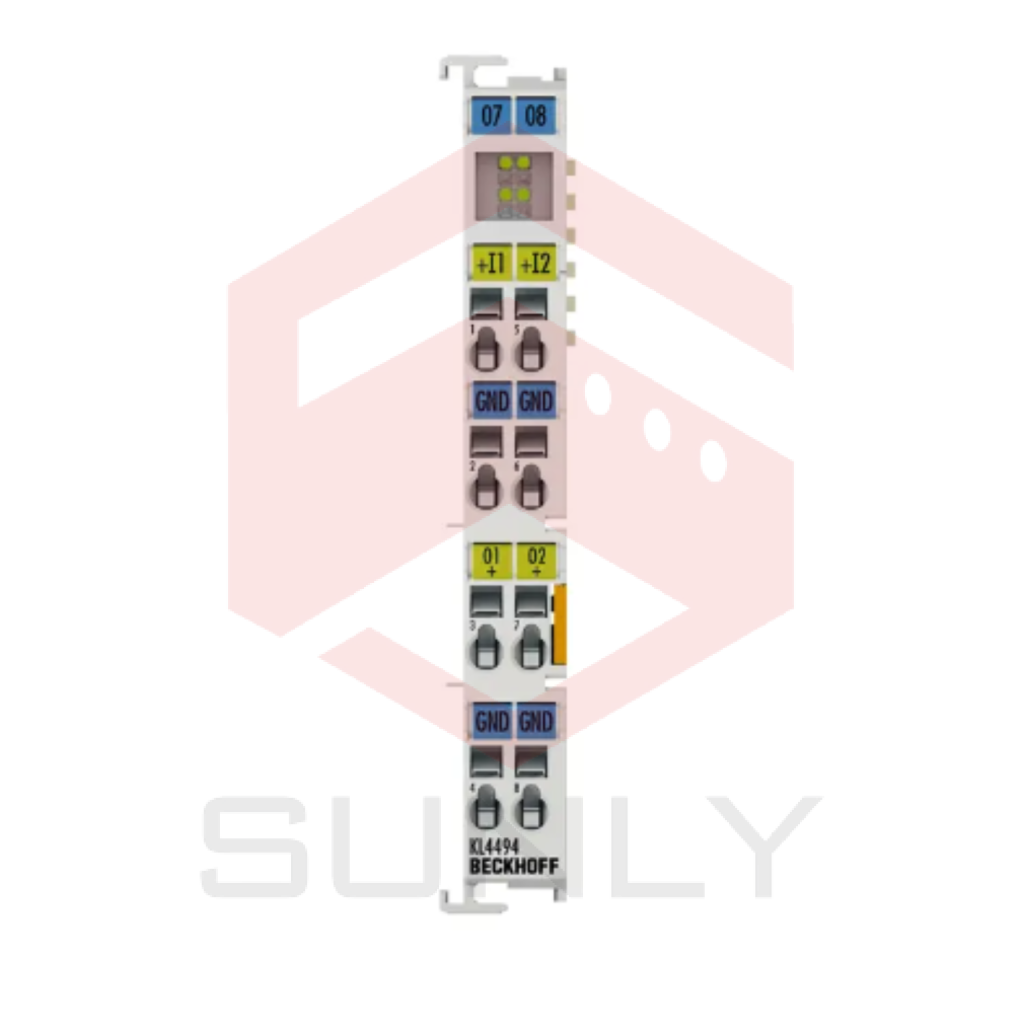

KL4494 | Bus Terminal, 2-channel analog input + 2-channel analog output, voltage, ±10 V, 12 bit, single-ended

KL4494 | Bus Terminal, 2-channel analog input + 2-channel analog output, voltage, ±10 V, 12 bit, single-ended

The KL4494 Bus Terminal combines two analog inputs and two analog outputs in one housing and can process signals in the range between -10 to +10 V. The voltage is digitized to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device or to the process level. The input and output channels of the Bus Terminal have a common ground potential. The run LEDs give an indication of the data exchange with the Bus Coupler.

Technology single-ended

Number of outputs 2 outputs + 2 inputs

Number of inputs 2

Power supply via the K-bus

Signal voltage -10…+10 V

Internal resistance input > 130 kΩ

Load > 5 kΩ (short-circuit proof)

Output error < ±0.3 % (relative to end value)

Resolution 12 bit

Conversion time < 2 ms

Electrical isolation 500 V (K-bus/signal voltage)

Current consumption power contacts load only

Current consumption K-bus typ. 70 mA

Bit width in the process image input/output: 2 x 16 bit data

Special features input/output terminal

Weight approx. 55 g

Operating/storage temperature 0…+55 °C/-25…+85 °C

Relative humidity 95 %, no condensation

Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4

Protect. rating/installation pos. IP20/variable

Pluggable wiring for all KSxxxx Bus Terminals

Approvals/markings CE, UL, ATEX, IECEx

Ex marking ATEX:

II 3 G Ex nA IIC T4 Gc

IECEx:

Ex ec IIC T4 Gc

>>> Refer to technical document:  kl4494en
